The light source chip adopts the international first-line brand, combined with HOTOPLEDS own IRLED packaging line and morethan 10 years of team research and development experience, after design, development, manufacturing and secondary optical design combination, a personalized custom light source module is issued. Its advantages: high optical power Output, high-efficiency heat conduction, etc., make the heating element uniform, fast response, life span of 20,000-50,000 hours, lead-free, no harmful gas release, no flicker, instant use, green environmental protection, can achieve high, Low-voltage DC input, safer and more convenient operation, all in line with international RoHS, UL, CE and other certification standards.
All light source boards can be designed, developed and manufactured according to the size and drawings required by users;
| Product | White Light Heater Plate | Ray range | 450-470nm（Choose） |
|---|---|---|---|
| Model | HS-PCBC-107-04 | Luminous power | 5000-5600W/㎡ |
| Current | 8-10A | Voltage | 300-580V |
| Heating width | 340mm | Power | 2400-5600W |
| Technology | Ultrasonic bonding、Die-bonding packaging with nano-silver paste | Recommended cooling method | Industrial cooling water |

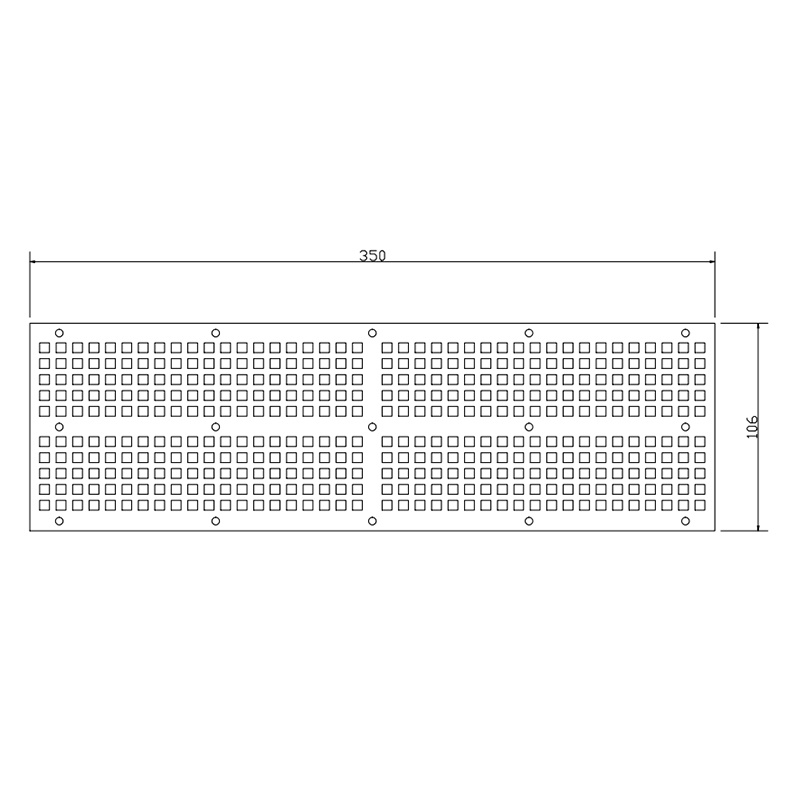

| Construction | Plated construction | Size | 350*100mm |
| Environment | 10-35°C；20-85%rh | ||
| Characteristic |
● The electro-optical conversion efficiency is as high as 40%,Stable energy output and low energy consumption, with electricity consumption less than 50% of traditional infrared light tubes； ● Driven by DC, does not contain mercury, does not pollute the environment, cold light source, high efficiency and energy saving, low-carbon environmental protection, is a better choice to replace traditional light source technology ● It can be turned on instantly, and can reach 100% infrared light power output immediately without preheating; ● The service life is more than 20000 hours | ||
| Product | White Light Heater Plate | Traditional infrared lamp |
|---|---|---|
| Optical spectrum | Monochromatic | Wide wavelength range, many miscellaneous wavelengths, low efficiency |
| Adjustable brightness | 0-100% | Small adjustable range |
| Electro-optical conversion efficiency | High | Low |
| Service life | ＞20000h | 5000-10000h |
| Starting speed | High | Low |
| Effective luminous area | Adjust according to demand | Unadjustable |
| Dimensions | Design according to customer needs | Unadjustable |
| Temperature control | Adjust according to demand， Precise temperature control | Small adjustable range |
| Power consumption | Low | High |
In order to meet your various needs in the industrial production process, HOTOPLEDS can provide you with customized services, and can design and manufacture your infrared heating panels according to customer requirements.
